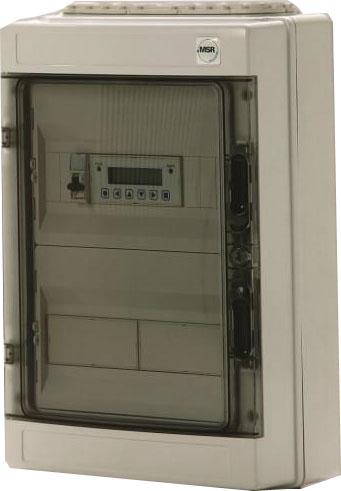

DGC-05

The gas controller series DGC-05 can monitor and process up to 98 digital (RS 485) and/or analog (4 to 20mA) gas transmitters of the ADT-X3 and MA/MD series.

Gas detection system

Gas system controllers

Product Description

  • Power supply:110/230 VAC 50/60 Hz; 24 VAC/DC -10% + 20%
  • Analog input: (4 to max. 96) 4 to 20 mA, overload and short-circuit- protected, input resistance 200 Ω
  • Analog output (max 12) configurable for each input 4 to 20 mA, overload and short-circuit- protected, max. load 500 Ω
  • Alarm relay: (max. 30) 250 VAC, 5 A, potential-free, change-over SPDT
  • Fault relay: (1) 250 VAC, 5 A, potential-free, change-over SPDT
  • LCD: Two lines, 16 characters each, illuminated
  • Status LED: (4) Operation – Fault – 1st alarm – ≥ 2nd alarm
  • Gases: Toxic, combustible and refrigerant gases
  • Enclosure: Plastic housing with view cover
  • Colour: RAL 7035 (grey)
  • Protection class: IP 65
  • Guidelines: EMC – Directive 2004/108/EC; Low voltage directive 2006/95/EC VDI 2053 EN 61010-1:2010 ANSI/UL 61010-1 CAN/CSA-C22.2 No. 61010-1

Measuring, warning and controlling device series for toxic, combustible and refrigerant gases and vapours. The gas controller series DGC-05 can monitor and process up to 98 digital (RS 485) and/or analog (4 to 20mA) gas transmitters of the ADT-X3 and MA/MD series. Five free adjustable alarm thresholds are provided pertransmitter.
For the alarm messages, up to 30 alarm relays with potential-free changeover contact and up to12 analog outputs (4 to 20 mA) are available.
The free adjustable parameters and set points enable avery flexible use in the gas measuring technique. Simple and comfortable commissioning, however, is granted by the configuration with default parameters.
